Turret Truck Man-Up CDMC

  • Model No.:CDMC15-75
  • Load Capacity:1500kg
  • Loading Center:600mm
  • Loading Distance:384mm
  • Wheelbase:1913mm
  • Service Weight (With Battery):9300kg
  • Wheel Type:PU

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Product description

    • To load and unloaded with rotate,Side shift,forks go left,right and front three ways without turning the truck.
    • High-strength German Krupp steel mast with high strength, lightweight and excellent workmanship;Stable and comfortable operating with lowered gravity center.
    • Classified Lifting control,main mast and auxiliary masts work independently,lift and lower simultaneous means the truck can reach the next position faster.
    • Imported AC controller,operation handle and instrument.
    • Electro-hydraulic proportional valve hydraulic control unit.
    • Two optional operation mode from seated and stand-on.

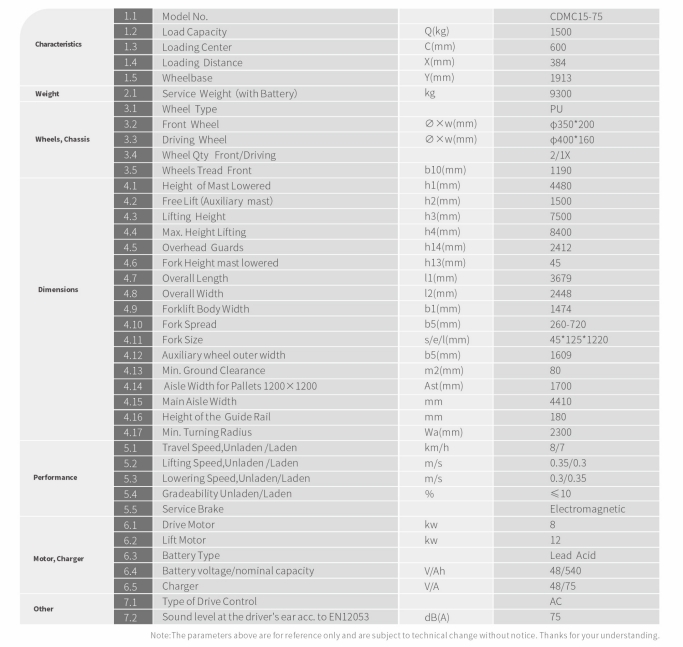

    Specifications

    Vedio

    Certificate
