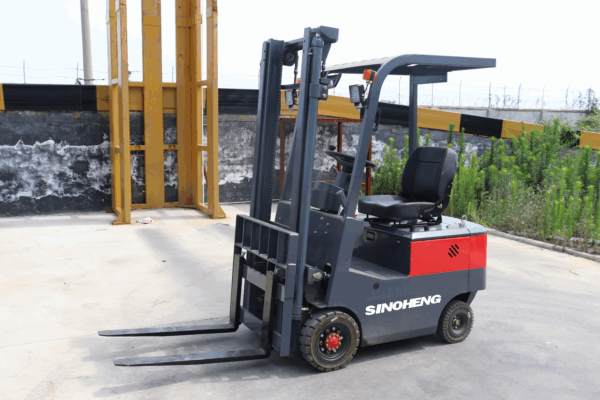

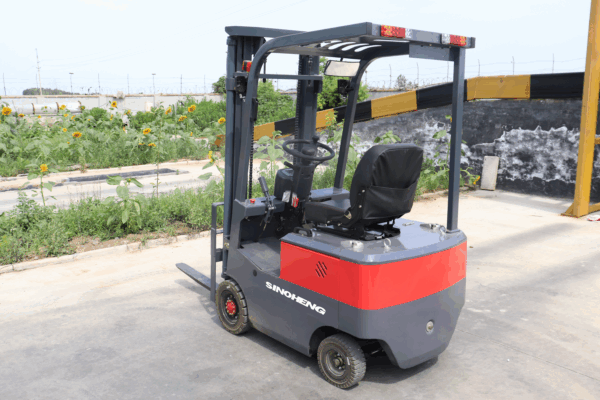

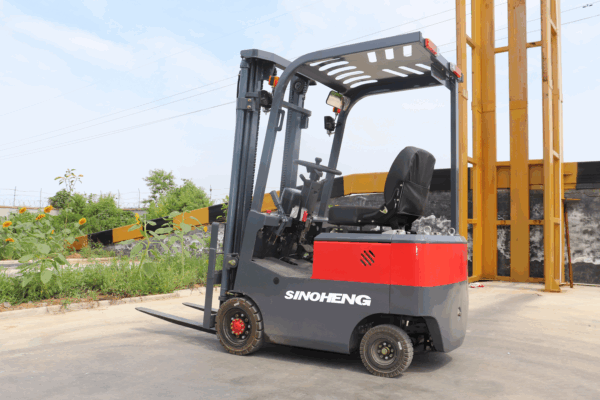

Electric Forklift 10

  • Carrying capacity: 10 tons
  • Drive mode: electric
  • Transmission mode: motor drive
  • Battery Type: High-performance lithium battery (or other type of battery)
  • Speed: Optional according to configuration

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    The Electric Forklift 10 is an electric forklift designed for handling and stacking materials weighing up to 10 tons. It uses an advanced electric drive system, with high efficiency, environmental protection, low noise and other characteristics, is the ideal choice for modern warehouses, logistics centers and factories.

    High efficiency and energy saving

    Using an efficient electric drive system, it has lower energy consumption and longer service life than diesel forklifts.

    Environmental protection and low noise

    no exhaust emissions, reduce environmental pollution; At the same time, the low noise design also reduces the interference to the working environment.

    Stable and reliable

    Equipped with advanced control system and safety protection device to ensure the stability and safety of the forklift during driving and lifting.
    Easy operation: user-friendly operation interface and comfortable seat design enable operators to easily and efficiently complete the handling task.

    Flexible adaptation

    The lifting height and driving speed can be adjusted according to the actual needs to adapt to the handling needs of different occasions.

    Electric Forklift 10 offers the following significant advantages in its category:

    Energy efficient

    Advanced electric drive system with lower energy consumption and longer service life.

    Environmental protection and low noise

    no exhaust emissions, reduce environmental pollution; At the same time, the low noise design also reduces the interference to the working environment.

    Customized service

    We can customize the forklift according to the specific needs of customers, including the adjustment of bearing capacity, lifting height, driving speed and other parameters to meet the needs of different occasions.

    In short, the Electric Forklift 10 is an efficient, environmentally friendly and stable electric forklift for a wide range of medium and heavy material handling scenarios. We are committed to providing customers with quality products and services to meet the actual needs of customers.

    Specifications

          Model CPD10E
     Power type Battery
     Rated load 1000kg
    Load center distance 500mm
    Driving type seat
    Length    With fork 2592mm
     Without fork 1652mm
          Whole Width 940mm
    Height Mast lowered height 2040mm
     Overhead guard height    1950mm
    Max working Height    3820mm
    Distance from seat to top light 970mm
        Wheel  base 1020mm
     Front overhang 327mm
          Back overhang 3130mm
     Front wheel tread 840mm
       Back wheel tread 741mm
    Min Floor clearance 90mm
    Max lifting height 3000mm
    Free lifting height 0mm
    Fork  changing              820/190
    Min Turning radius 1800
    Min Right angle aisle width       2000
    Tilt angle a/β 6°/12°
    Max lifting speed without goods 250mm/s
    Max lifting speed with full  goods 220mm/s
    Max speed without goods 12km/h
    Max speed with full goods 11km/h
    Max climbing angle ≤10
    Whole weight 1650kg
    Driving Wheel 2x/2
    Tyre model Solid tyre
    Front Tyre 15×4 1/2-8
    Rear Tyre 3.50-5
    Hand Brake Hydraulic Pedal
    Brake  type M-Hand
     Battery Volt/ capacity 2X24V/160
     Driving motor power 4.0AC
     pump power 4.0DC
